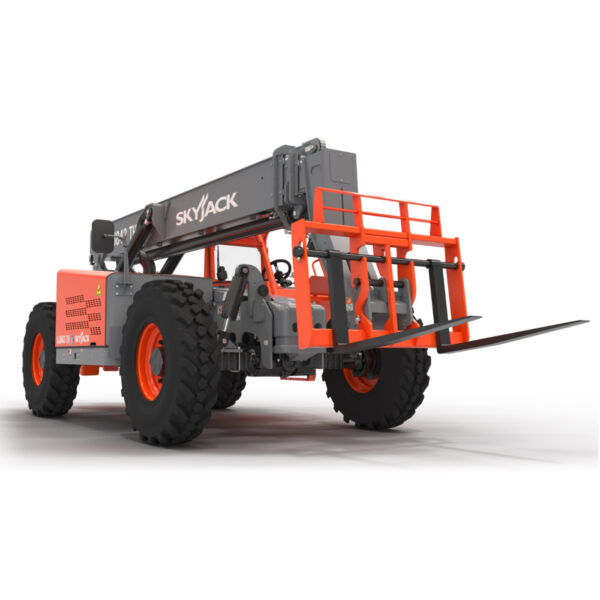

SJ643 TELEHANDLER

Maximum Lift Capacity:  6,000 lbs (2,722 kg)
Maximum Lift Height:  43’ 4” (13.21m)

Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing utilization. With a variety of proprietary features, Skyjack’s TH series offer the industry’s best life cycle value.

Skyjack proudly provides quality engineered, simple and reliable access and material handling equipment globally, so that companies can maximize utilization and their return on investment. All Skyjack’s products are designed to be easy to service and maintain. By keeping design simple and using proven technology, the reliability and ease of service is common to all the company’s products. Because of this, Skyjack machines offer the rental industry’s best life cycle value through low cost of ownership.

Using an optimized balance of engine horse power, torque, and hydraulic performance, Skyjack SMARTORQUE™ products deliver the same on-site job performance as higher power units – providing excellent performance with less engine horsepower. Less emission controlling components avoids the cost associated with their complexity, as well as the time and inconvenience required in maintaining them. SMARTORQUE™ means no Diesel Particulate Filter (DPF), no Diesel Exhaust Fluid (DEF)/AdBlue, and no other active exhaust after treatment.

Maximum Lift Capacity6,000 lbs (2,722 kg)
Maximum Lift Height43’ 4” (13.21m)
Rated Lift Capacity @ Maximum Height6,000 lbs (2,722 kg)
Rated Lift Capacity @ Maximum Reach1,000 lbs (454 kg)
Maximum Forward Reach28’ 7” (8.71m)
O/A Length - Less Forks19’ 6” (5.94 m)
Overall Height - Stowed7’ 11” (2.41 m)
Overall Width8’ 5” (2.56 m)
Ground Clearance19" (48.3 cm)
Turning Radius - Outside147" (3.73 m)
Operating Weight20,706 lbs (9,392 kg)
Max Travel Speed - Forward17mph (27 km/h)
Fuel Tank35.7 gal. (142 L)
Drawbar Pull17,750 lbs
Steering3 mode (Front Wheel, 4 Wheel, Crab)
TiresSolid Rubber
