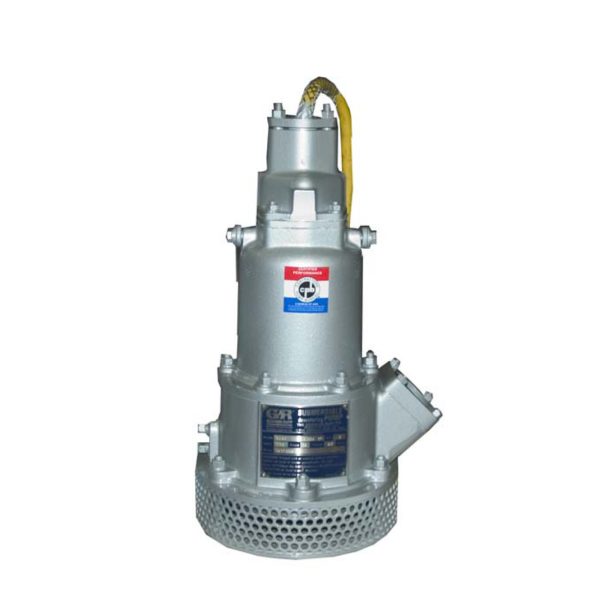

Sub Pump 2"x2" S2A1 115V 1P

Suction:  2"
Discharge :  2"

 Click on logo for manufacturers site

Gorman-Rupp Widebase submersible pumps tackle the big jobs. Where large solids are not a problem, these versatile models offer high-head, high-volume operation and stand up to the abuses of the worst conditions. Whatever the application – general construction, strip mining, tunnel work or general purpose – Gorman-Rupp Widebase pumps are built to operate quietly, effectively and safely.

High Head, High Volume Solutions

Gorman-Rupp Wode Base Submersibles are designed for applications where high volume and high head are required, and large solids are not a problem. Pumps have only two moving parts and three wearing surfaces so maintenance and repairs are minimal.

Abrasive Handling Impeller

Abrasion-resistant ductile iron and manganese bronze impellers stand up to sand, gravel and other abrasive materials. The fully shrouded impeller back reduces seal pressure and helps prevent foreign material from entering the seal cavity. Seal life is extended and operational life of the pump is increased. Optional impellers of CD4mCu are available for corrosive/abrasive applications.

Dual Seals, Double Protection

Primary seal keeps dirty water in the pump end and prevents contamination of the oil cavity. A second “fail safe” seal provides extra protection against the possibility of damage to the motor. Positive oil lubrication enables the pump to run dry without seal damage.

Corrosion-Resistant Stainless Hardware

Rotor shaft and all internal nuts and bolts coming in contact with the liquid are made of stainless steel to resist corrosion and pitting and extend the operational life of the pump. For severely corrosive/abrasive applications, stainless steel lifted pump models of CD4MCu are available.

S2A1 115V 1P
Discharge 2"
Solids Handling0.31"
Maximum Operating Pressure 49 psi
Motor2 H.P.
Drive Type Electric
Power Requirements Single
Amps Full Load2.8/2.8 kW
Power Cable4 Wire; Type SO/SOW/SOOW; 10 AWG; 3 Power Conductors, Plus 1 Ground.
Recommended Generator Size6 kW Across the Line Start
Weight93 lbs
Electrical Control BoxYes
